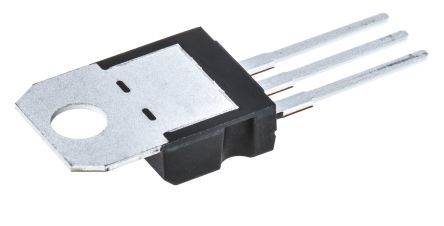

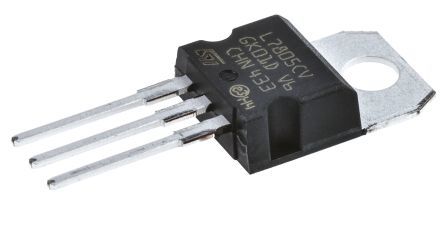

STMicroelectronics, 5 V Linear Voltage Regulator, 1.5A, 1-Channel 3-Pin, TO-220 L7805CV
L78 Series Linear Voltage Regulator, STMicroelectronics
STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.
Features and Benefits
Output current up to 1.5 AThermal overload protectionOutput transition SOA protectionOutput current up to 1.5 AOutput voltages of 5; 6; 8; 8.5; 9; 12; 15; 18;24 V
Applications
Power Management
Specifications
| Output Voltage | 5 V |
| Maximum Output Current | 1.5A |
| Package Type | TO-220 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Maximum Input Voltage | 35 V |
| Pin Count | 3 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +150 °C |
| Number of Outputs | 1 |
| Polarity | Positive |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 9.15mm |
| Quiescent Current | 8mA |
| Typical Dropout Voltage @ Current | 2 V @ 1 A |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Load Regulation | 100 mV |
| Line Regulation | 100 mV |
