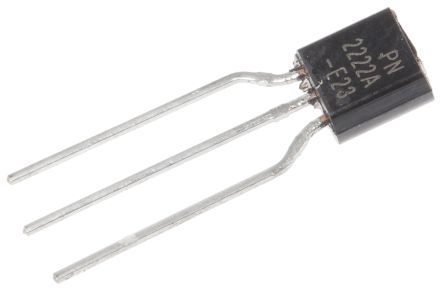

ON Semi PN2222ATA NPN Transistor, 1 A, 40 V, 3-Pin TO-92
Small Signal NPN Transistors, 40V to 50V, Fairchild Semiconductor
Bipolar Transistors, Fairchild Semiconductor
Bipolar Junction Transistors (BJT) broad range provides complete solutions for various circuit application needs. Innovative packages are designed for minimal size, highest reliability and maximum thermal performance.
Specifications

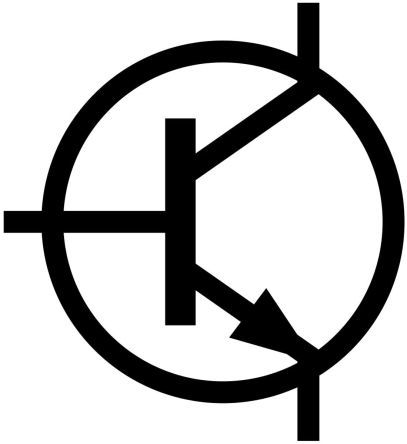

| Transistor Type | NPN |
| Maximum DC Collector Current | 1 A |
| Maximum Collector Emitter Voltage | 40 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 625 mW |
| Minimum DC Current Gain | 35 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 75 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 300 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +150 °C |
| Maximum Base Emitter Saturation Voltage | 2 V |
| Height | 5.33mm |
| Length | 5.2mm |
| Width | 4.19mm |
| Maximum Collector Emitter Saturation Voltage | 1 V |
| Dimensions | 5.2 x 4.19 x 5.33mm |
| Minimum Operating Temperature | -55 °C |
