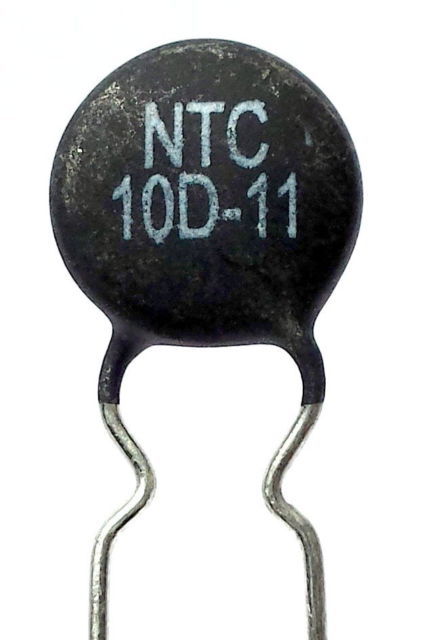

NTC 10D-11 Inrush Current Limiter, Power Thermistor 10 ohm 3Amp
The 10D-11 Power NTC Thermistor provide inrush current suppression for sensitive electronics.
Product Features
NTC10D-11 Circuit Protection Thermistor, Inrush Current Limiter
· Resistance 10 Ohms R25C +/- 20%
· Max Steady State Current: 3 Amps, when resistance = 0.395 Ohms
Size: 12.5mm diameter, 5mm width, 7.5mm lead spacing
Product Description
The 10D-11 Power NTC Thermistor provide inrush current suppression for sensitive electronics.
Connecting a 10D-11 in series with the power source will limit the current surges typically created at turn on.
Once the circuit is energized the resistance of the 10D-11 will decrease rapidly to a very low value, power consumption can be ignored and there will be no effect on normal operating current.
Using the 10D-11 Power NTC Thermistor is a most cost-effective way to curb surge current and protect sensitive electronics from damage.
