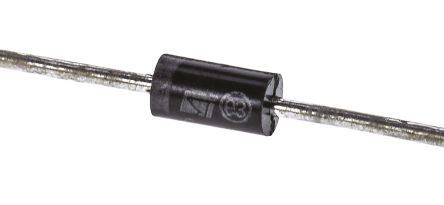

STMicroelectronics 40V 1A, Schottky Diode, 2-Pin DO-204AL 1N5819
STMicroelectronics 1N5817/8/9 Low Drop Power Schottky Rectifiers
The Vishay 1N5817, 1N5818 and 1N5819 are a family of low-drop 1A Schottky rectifier diodes. They are designed for switch-mode power supplies and high frequency DC-to-DC converters. Features:Fast switchingLow forward voltage dropSmall conduction lossVery low switching lossWhere are they used?1N5817-1N5819 are designed for low voltage, high frequency inverters, freewheeling, polarity protection and small battery chargers.What is the operating junction temperature?-65°C to +150°CVersions Available:1N5817 - 20V1N5818 - 30V1N5819 - 40V
Diodes and Rectifiers, STMicroelectronics
Specifications
| Maximum Continuous Forward Current | 1A |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Peak Reverse Repetitive Voltage | 40V |
| Mounting Type | Through Hole |
| Package Type | DO-204AL |
| Diode Type | Schottky |
| Diode Technology | Schottky |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 450mV |
| Diameter | 2.71mm |
| Peak Non-Repetitive Forward Surge Current | 25A |
