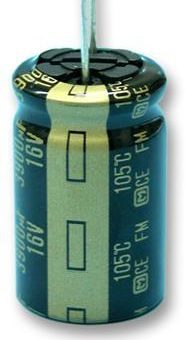

Panasonic 330μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 11.5mm +105°C 8mm 3.5mm
FM Series 6.3 V to 16 V
Panasonic FM Series Type A electrolytic capacitors offer low impedance (40% to 70% less than the Panasonic FC series) and high endurance. At +105°C, the endurance is 2000 hours to 7000 hours (depending on case size).
High reliabilityLong lifeHigh ripple current
Applications
Panasonic FM Series Type A electrolytic capacitors are recommended for use in industrial instruments due to their high reliability. Please note, they are not suitable for automotive applications.
Operating Temperature (°C)
-40 to +105
Tolerance (%)
20
DC Leakage Current
I ≤ 0.01 CV μA
Specifications
| Capacitance | 330 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 11.5mm |
| Height | 11.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.5mm |
| Lifetime | 3000h |
| Series | FM Radial |
| Tolerance | ±20% |
| Ripple Current | 950mA |
